“Boys, there ain’t no free lunches in this country. And don’t go spending your whole life commiserating that you got the raw deals. You’ve got to say, I think that if I keep working at this and want it bad enough I can have it. It’s called perseverance.” -t. Lee Iacocca


Open file (58.56 KB 1244x2374 MaidComFront.jpg)
Open file (39.04 KB 1244x2318 MaidComSide.jpg)
Open file (56.65 KB 1244x2318 MaidComBack.jpg)
MaidCom Kiwi 02/08/2024 (Thu) 06:40:01 No.29219
MaidCom Project Thread 2 Project Goal: Simple, low cost, extensible platform for robowaifu development. Picrel shows the model which is being developed. Every part will be designed to be easily printable and replaceable. Her designs will be open source. Modding and customization will be encouraged. This is a base model. Early revisions will be heavily limited in functionality. I invite you to help design and define standards so that it is easy to create specialized add-ons to allow her to become your own waifu. Collaboration is important, MaidCom is officially partnered with Lin and his Waifu Wheelchair, if you'd also like to be officially partnered, say so. Cat eats and miniskirts are encouraged! <--- Previous thread: ( >>15630 ) >=== -add crosslink
Edited last time by Chobitsu on 08/14/2024 (Wed) 21:50:13.
Open file (1.43 MB 2917x3137 Front.jpg)
Open file (1.02 MB 2511x3193 side.jpg)
Open file (1.70 MB 2999x3895 back.jpg)

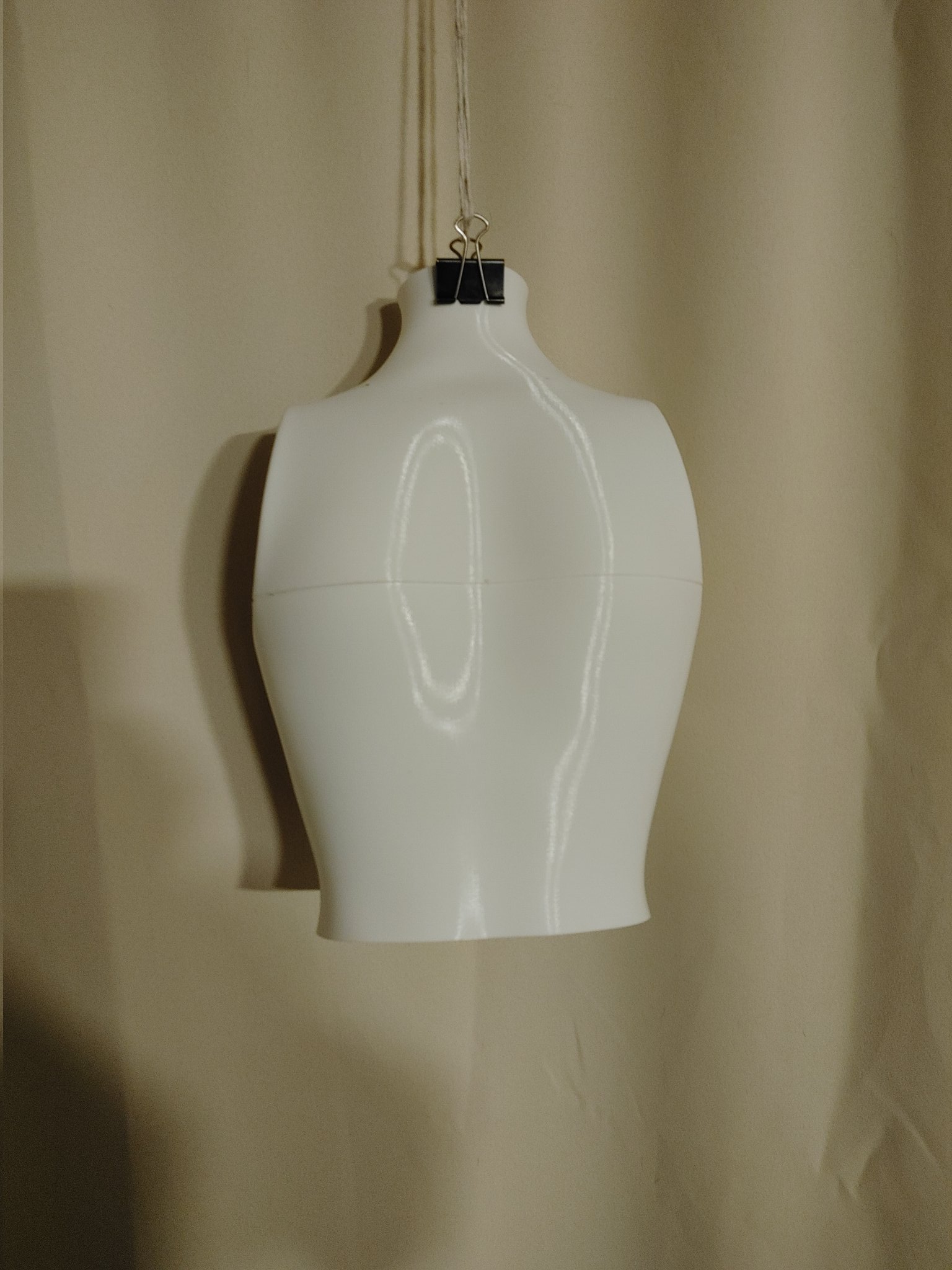

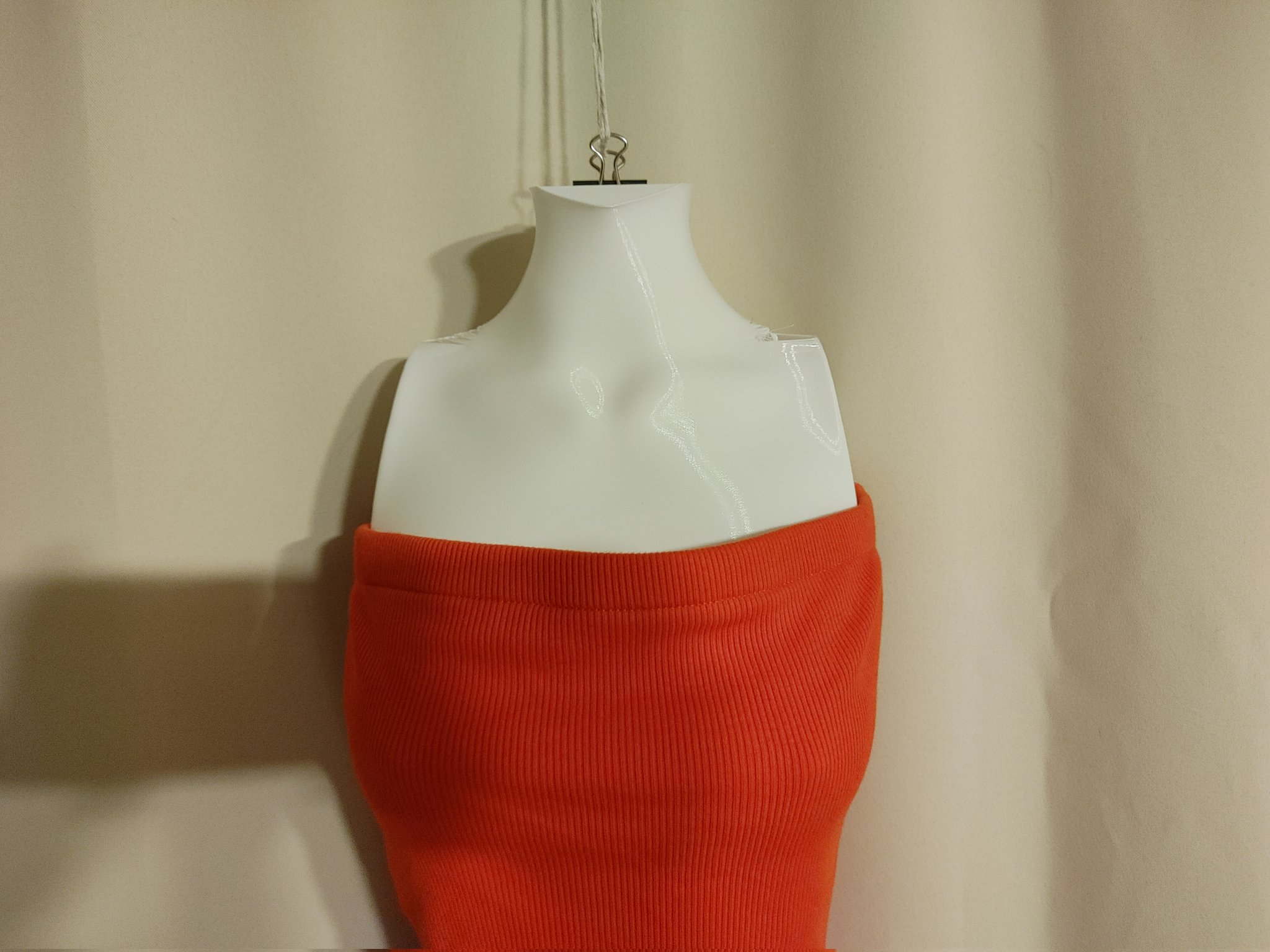

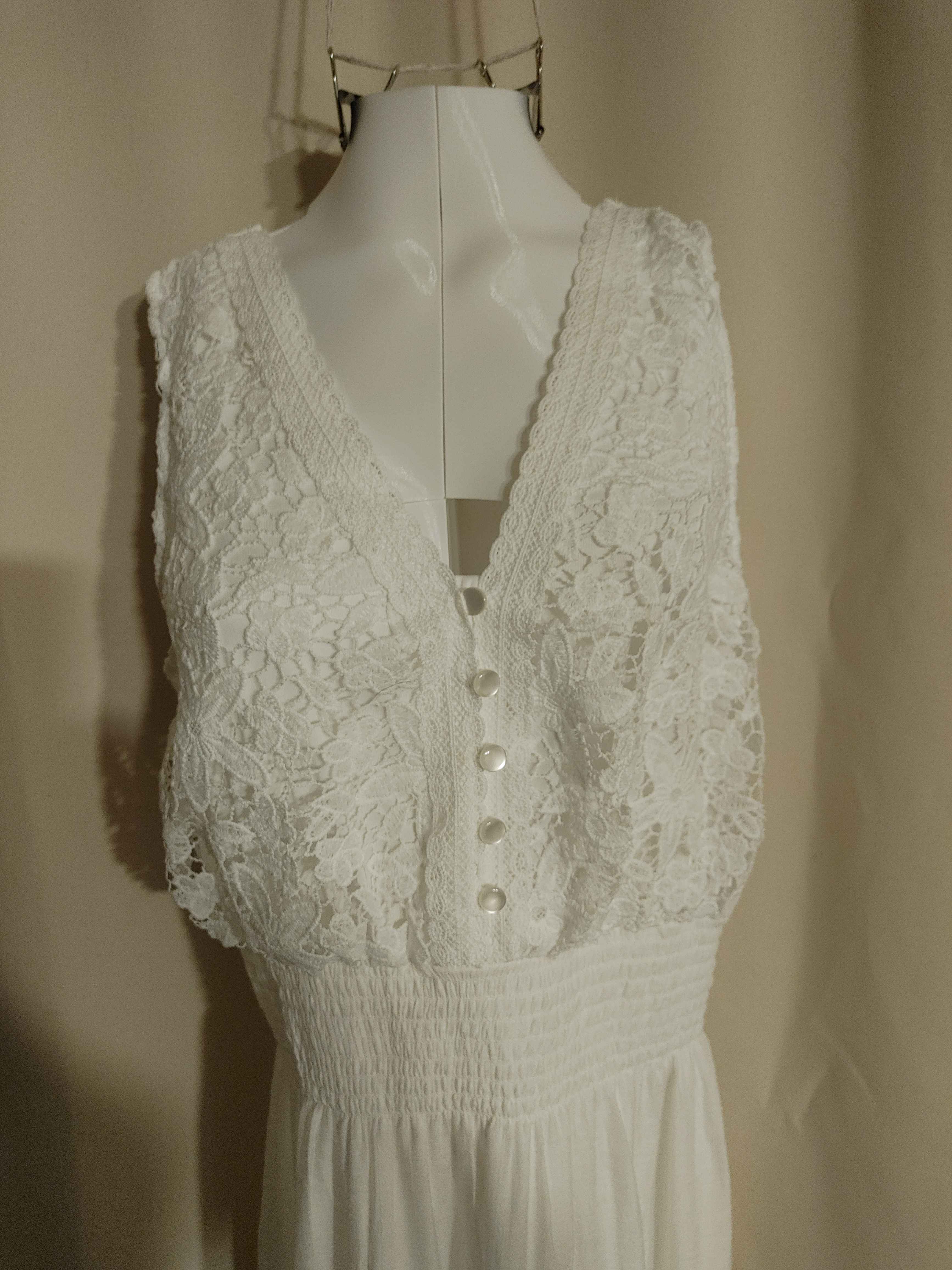

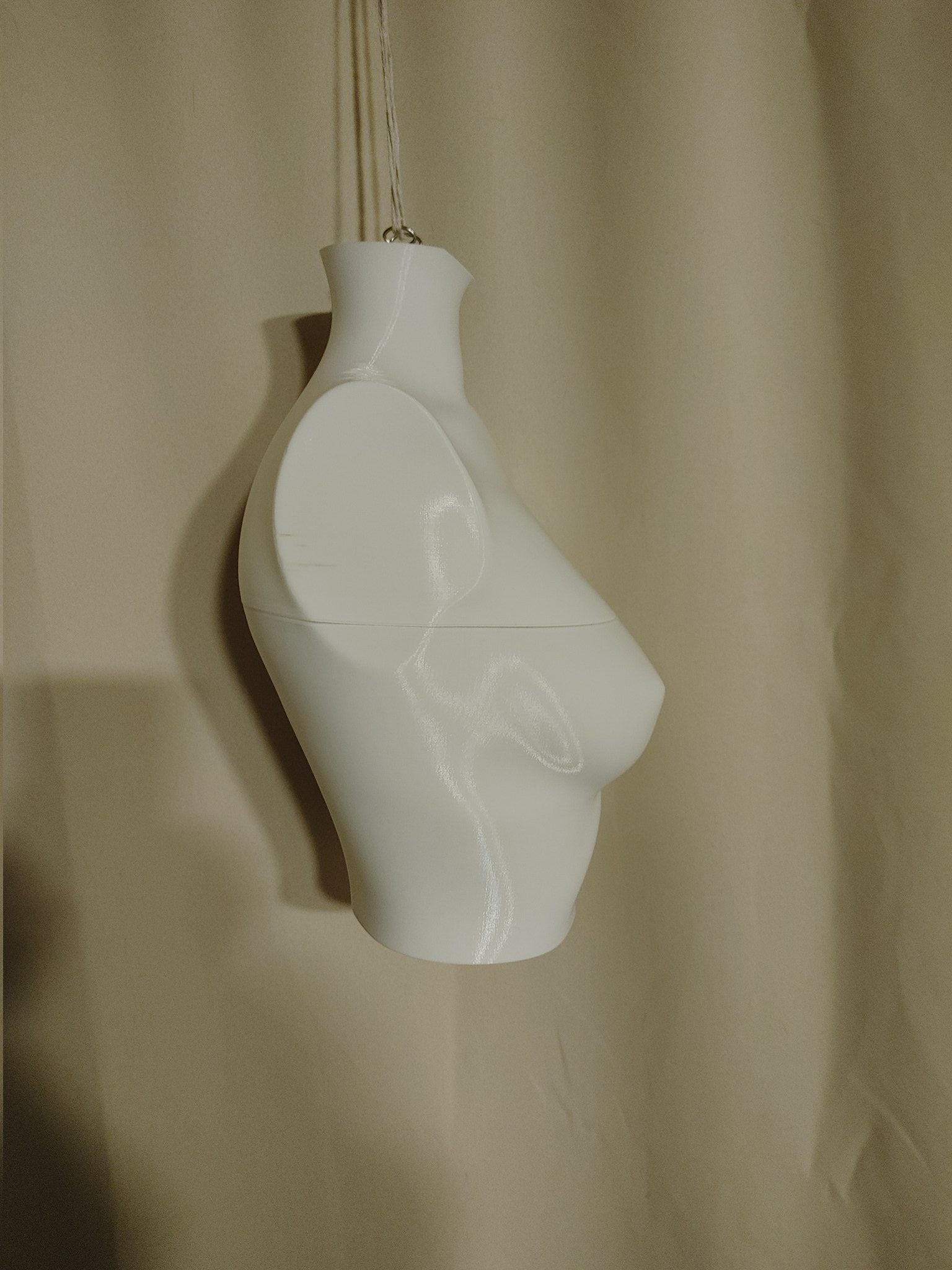

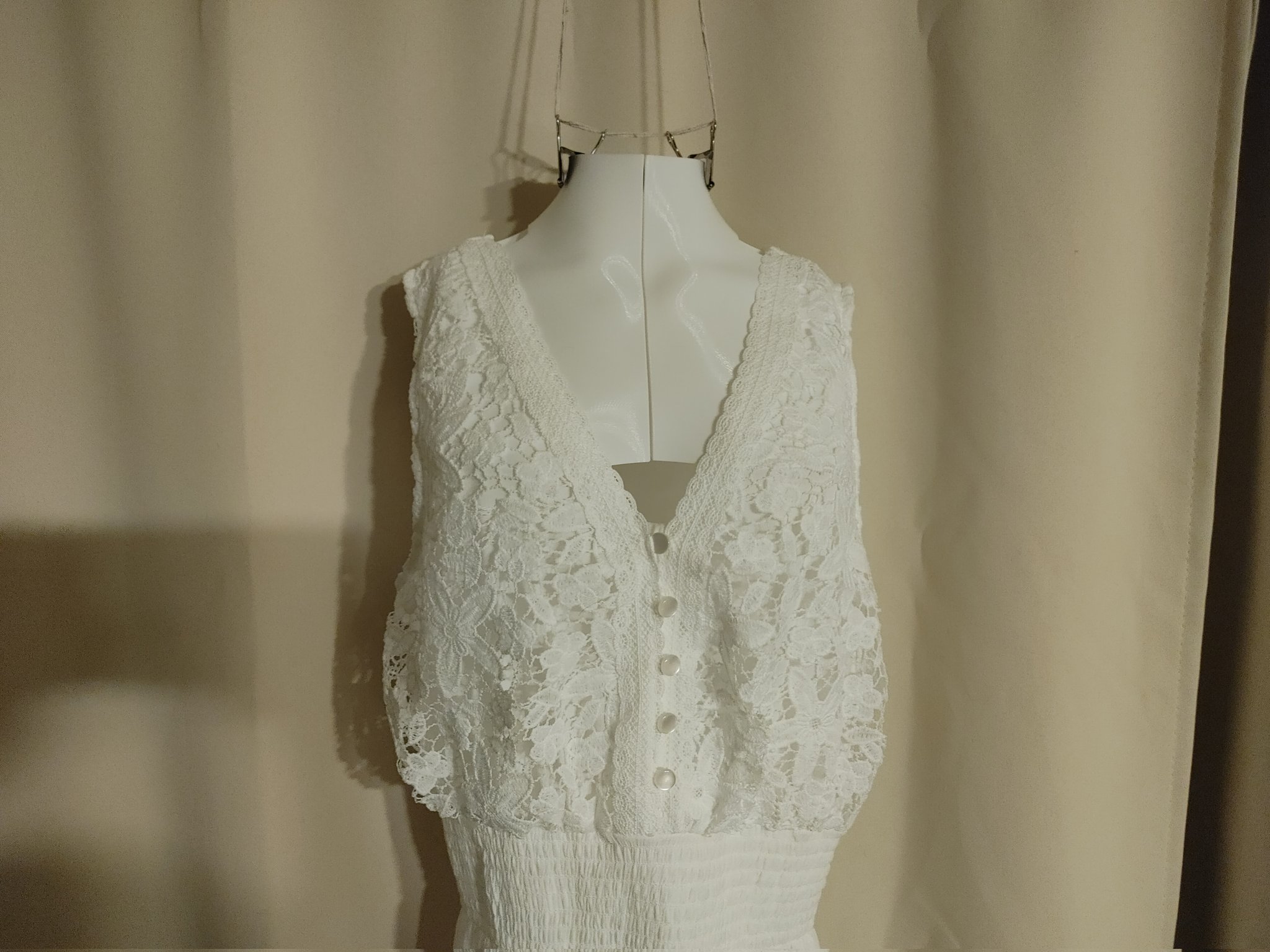

Test print at 1/3 scale, my printer is a tad screwed up
>>35585 That's looking really good, Kiwi! You're developing quite the modelling skills. As a critique, it seems to me that her spine has too much dorsal concavity (visible from your #2 side pic). I'd suggest you 'flatten' that out a bit. Do you have a real human model reference you're working from? Otherwise GG, keep up the good work! Cheers. :^)
Open file (1.00 MB 2732x2953 FrontSide.jpg)
Open file (605.18 KB 2655x2714 Back0.jpg)
>>35586 >Flatten her back/human model Felt the same avout her back. It will be fixed when everything is put together. As for human reference, I use them often. Anatomically, my designs are close to human. They're also close to my waifu, Aigis. Striking that balance is personally important. Newest chest test came out beautiful. It's my favorite. Looks and feels great IRL. Surprisingly durable for 120 grams too. Worth every second of those long years studying to get here. Now, I'm going to get her hips right.
>>35592 How did you get it so smooth and shiny?
>>35592 Those are looking quite nice, Kiwi. Any advice on your printing settings to achieve success? I'm presuming you're taking a 'vase' printing approach? >Worth every second of those long years studying to get here. Really proud of you, Anon. Keep going! :^) >>35595 This. I really like the anisotropic glint look!
>>35595 Vase mode with tuned settings, 30mm/s, 240 hotend, 70 bed, and .8 line width. This is for Comgrow PETG, settings will vary for different filaments. It's shiny because PETG is shiny, I prefer matte PLA visually but, they shatter when I lay on them. >>35603 It's very high poly, I've done heaps of sculpting and smoothing to get it to look that nice at large scales. You can still see her polys because going too high poly causes Cura to take a long time. Don't want to cause older machines to combust slicing their own MaidComs.
>>33842 > the maid aspect of robotwaifu might be harder than Yes, archiving the same dexterity of the hands than humans is likely to be even harder than some reasonable level of walking in a home. >>35619 Congrats
Open file (309.64 KB 1511x1359 Hand.jpeg)
Open file (94.75 KB 676x422 HipEv.png)
>>35620 Thanks >Hand dexterity MaidCom is going to use a simple hand that fakes that dexterity through simple linkages, similar to this. https://journals.sagepub.com/doi/full/10.1177/0954411919874523 Her hip development is going good.
>>35641 >hands Oh yeah, that's great. Are those really printed entirely in-place at one go, Kiwi? >hips Really looking forward to see how you tackle the ball-joint+3-axis motion requirements, Anon. I've thought long and hard about this, but I'm still in a bit of a quandry. I love Sukabu's design motifs, but I can't see how to pull them off w/o several-thousand-us-dollars-a-pop hip actuators. Hmmm...still thinking on it. Cheers. :^)
Open file (161.59 KB 862x632 MaidFlexion.png)
Open file (177.26 KB 862x632 MaidRotation.png)
>>35663 >Hand As far as I can tell, that hand is print-in place. At least, they claim it is, though I'm not willing to pay them to find out. Wish they'd provide the hand for free, if only for the benefit it would bring to poor people. My hand will come in at least two parts due to aesthetic reasons. >Hips MaidCom will only move her leg in-and-out with a pivot about the apex of her hip joint. I can understand this may be disappointing but, it's necessary due to mass/cost/volume constraints. A full 3 DOF hip joint would require a more complex design to appear feminine. It's more of something for gen 3 or 4. Unless some one else wants to design it for us.
Open file (174.84 KB 726x561 hipp.jpg)
>>35684 Thanks, that's a great resource Current potential hip
>>35684 Any idea if they test these in any way, Anon?
>>35668 That's fine, Kiwi. Good thinking, actually. Start smol, grow big. Cheers, Anon. :^)
>>35689 I haven't seen anything about verified testing, but it looks like they're made by a dedicated and tight-knit community (sounds familiar...), and some have been printed before
@Kiwi Can you check the final video of crosslink-related : ( >>35675 ) please? At about 8mins, there's a humanoid torso/bust attached to a more-standard mobile robot base. I know we here are going for a full, 4-limb robowaifu, but maybe we can design some sort of mobile 'scooter' she can step onto that would both motivator her around on smooth surfaces, but also support her with it's base mass for doing tasks like reaching & moving things? For example a basket of laundry. I'm sure we've covered these concepts before in throd#1 : ( >>15630 ). inb4 tachikoma spooder... :D >>35691 Thanks, GreerTech! Some of these look quite advanced. I've been a believer in us here following the medical prosthetics industry, at the least for inspiration.
Open file (369.93 KB 928x978 MaidComUpdate.png)
Close to a truly finalized design.
>>35938 Neat! GG, Kiwi. :^) I'm a little concerned about a pinch hazard between the hips & thighs though. Will there be some kind of covering there?
Open file (25.04 KB 474x564 clank.jpeg)
>>35951 OK, I LOL'd despite my better judgement. :D One big advantage of BJD designs is to reduce pinch hazards at the joints. I'd simply like us to capitalize on that idea for our group project here. Cheers. :^)
Open file (9.32 KB 254x1000 white_tights.jpg)
Open file (91.39 KB 1500x1296 meow.jpg)
>>35941 My idea is cover her in clothes for safety. ...Also for personal reasons. >>35953 Could you provide some 3D printed ball joint hip designs? I'm open to ideas. I like my back joints, though I recognize that they could be improved.
>>35991 In Greentext anon's Doll thread ( >>28514 ), there was linked a life-sized BJD ( >>29758 ) AFAICT. Here's the printables: https://www.thingiverse.com/thing:614366 Also, I know we have some other doll internals designs here, but I can't locate them ATM. Maybe this will be enough to go on with, Kiwi?
>>35991 I would recommend the dress, so that the clothes don't get pinched either
Open file (396.92 KB 895x742 RoboticaVSMaidCom.png)
Open file (47.41 KB 847x1280 ProtectiveClothes.jpg)
>>35992 Was interesting to compare Robotica to my MaidCom design. I do like the aesthetics of Robotica's hips. They're designed with the luxury of an internal elastic cord that allows for her hip beans to twist and contort between her pelvis and thighs. Something I can't replicate. I'll do more investigation into mitigating potential pinching. >>35993 We are of kindred spirit, dresses are great for protection. Cloves are also necessary. Giant gloves are actually needed in many factories so those big arms don't pinch operators if an actuator loses power and droops. Also, helps to prevent burs from getting into the joints. Ferrous burs love to stick to giant steppers.
Open file (770.27 KB 1920x1152 MSB hip parts.jpg)
Open file (657.16 KB 1600x900 assembly.JPG)
Open file (382.99 KB 800x600 IMG_3892.JPG)
Open file (852.83 KB 1200x800 IMG_3880.JPG)
Open file (360.53 KB 800x600 IMG_3894.JPG)
>>35991 Check out the "My Size Barbie Mod - 3d Print files for Download" thread over on the dollforum for a different take on BJDs: NSFW https://dollforum.com/forum/viewtopic.php?t=69416 In that case the "ball" part of the joint is part of the hip and is made from a steel hemisphere. The joint with the leg is held together by powerful magnets. Instead, if you made the hemisphere so it could rotate, you would have the forward and back motion. Cut a vertical (while standing) slot in the hemisphere to allow for leg movement to the side for balance and the sinusoidal motion to of the foot during walking- one foot in front of the other. The slot doesn't have to be very big, as you should only need at most 60 degrees of rotation (unless you want her to be a gymnast). This way the slot ends are always covered by the top of the leg. Add a rotation bearing at the point where the new printed leg top joins the original leg to allow for the vertical rotation of the leg for turning while walking, crossing the legs while seated and the "schoolgirl twist" during snu-snu. I was planning to build one of these and then a robowaifu version as a retrofit thread, until I found this site.
Open file (209.72 KB 763x822 BigGap.png)
Open file (1.77 MB 2448x3264 BunnyBarbie.JPG)
>>36002 It appears that their solution is essentially to just have a huge thigh gap. Not sure that's better than having the pinch zone.
>>36016 > just have a huge thigh gap Well, it is a modification of an existing doll to fit a specific onahole. You are designing from scratch, so you can design for whatever spacing you want, and the mechanics should still allow for the legs to spread, if desired. Plus, most of the time she'll be wearing her uniform, so it may be a question of what you are willing to accept being hidden most of the time, vs exposed/used occasionally. This may always be a problem with hard-shelled bodies. Ultimately, it's a question of personal taste. I never even noticed the spacing of the MSB's legs, and it doesn't bother me, but those tiny hands and mis-proportioned arms really annoy me.
>>35998 >Was interesting to compare Robotica to my MaidCom design MaidCom is much, much better IMO. Yours has sovl, theirs hasn't managed that yet. Anyway, please take the good ideas about the BJD designs where you can, Kiwi. Thanks for the protip about the 'glove', Kiwi. I think our general consensus here is that we'll almost all devise padded, full bodysuits. Not only will it make our robowaifus more comfy in general, it increasing safety & cleanliness (both ours and waifus). >>36002 Excellent resource, Robophiliac. Thanks Anon. >>36016 >Not sure that's better than having the pinch zone. Pretty unappealing design in general IMO. But I do like the oversized hip-ball. I think that can be integrated into a highly pleasing female hip/thigh design with tweaking. >>36018 >You are designing from scratch, so you can design for whatever spacing you want, and the mechanics should still allow for the legs to spread, if desired. Really good points, Anon. <---> Cheers, Anons. :^)
>>35991 One more point, though it's a relatively minor consideration. Overlapping rigid material that can move tends to act like scissors, whenever any material that can be cut finds its way between two pieces of it. I speak from experience. Years ago, when I had much longer hair and still had complete coverage I used to fight for fun in full medieval plate armor I'm back on my meds and feeling much better now. It was part of a lifelong interest in all things robotic, including the concept of powered armor . After one particular day of battle, I realized that my hair- except for a few wispy strands- was several inches shorter than it had been. It had been trimmed by the plates of armor as I moved. Your picrels didn't show what wig, if any, your waifu will wear, but if it's going to be something very expensive like human hair (and long enough to fall down her back) you may want to take steps to protect it from a similar misfortune. I ended up using felt pads glued under the edges of the plates so that the surfaces could glide over each other without ever actually touching. It was also much quieter in use. This may also be a concern in the "pinch" zone- not so much trimming hair as snagging and plucking it from anon at extremely annoying moments, if anon doesn't trim down there. Yes, there are so many details... Cheers
Open file (32.85 KB 474x694 tomboyrobot.jpeg)
>>36045 Maybe then a Tomboy robot?
>>36045 >Haircut unawares by your favorite LARPwear. LOL I'm really glad that didn't take off anything more important, Robophiliac!! :D Thanks for the great safety advice here, BTW. >crosslinked to safety throd Cheers, Anon. :^)
Open file (38.74 KB 880x963 Front.jpeg)
Open file (38.04 KB 880x963 Fleible.jpeg)
Open file (33.33 KB 880x963 Back.jpeg)
Open file (33.01 KB 880x963 BendoverCurve.jpeg)
Getting there
>>36346 Good job!
>>36346 This looks like some very solid progress, Kiwi. GG.
Open file (118.48 KB 740x602 Front.png)
Open file (136.99 KB 740x602 Back.png)
>>36348 >>36349 Thanks! Still learning but, I know it's getting close to done.
>>36579 That's looking really good now, Anon. I've been banging a number of ideas around about cheap actuation solutions that will fit into the volume available for each hip/upper_thigh. For some reason (maybe b/c thinking about pinching) I'm finding this render that NoidoDev posted ( >>36561 ) inspiring rn. I'm also picturing a partial inner ball to rest inside the visible outer ball that could allow for nearby linear actuators to rest inside the torso volume, w/o interfering with the needed major two servos per joint. This would allow for 3-axis movements, wouldn't over-complicate the mechanisms additionally, and would still provide good pinch-protection given those two constraints. When I pick up modelling, I'll diagram my ideas about this for everyone to brainstorm & critique together. <---> Looking forward to seeing what's coming next, Kiwi! Cheers. :^) Soon.
Open file (1.39 MB 1920x1080 can_see_every_curve.png)
>>36346 >>36579 Great progress. I like it. At least with the imagined flesh suit on top of it. Though, the back in the last pic still looks a bit to bubbly for my taste, but okay. Anyways, I posted many of the pics on this thread on Reddit. If you mind, tell me. It's here: https://www.reddit.com/r/gynoidappreciation/comments/1iiqpgg/maidcom_project/
Open file (43.73 KB 660x964 BendOver.jpeg)
>>36609 Not quite sure I understand your idea. Could you provide a drawing? >>36646 I'm endeavoring to de-bubble her booty. Feel free to share anything I post anywhere. Heck, I'll freely share any model I still have with anyone that asks. I welcome distribution of anything related to MaidCom
>>36657 >I'm endeavoring to de-bubble her booty OH NO! I was looking and thinking,"Wow look at that booty", and now your going to debootie it. A crime.
Open file (180.98 KB 588x770 AnatomicalBody.png)
>>39359 Nice!
>>39359 That's looking really refined now, Kiwi! GG. :^)
Open file (314.03 KB 788x910 Comparison.png)
Open file (2.28 MB 3468x4624 WaifuOutfit.jpg)

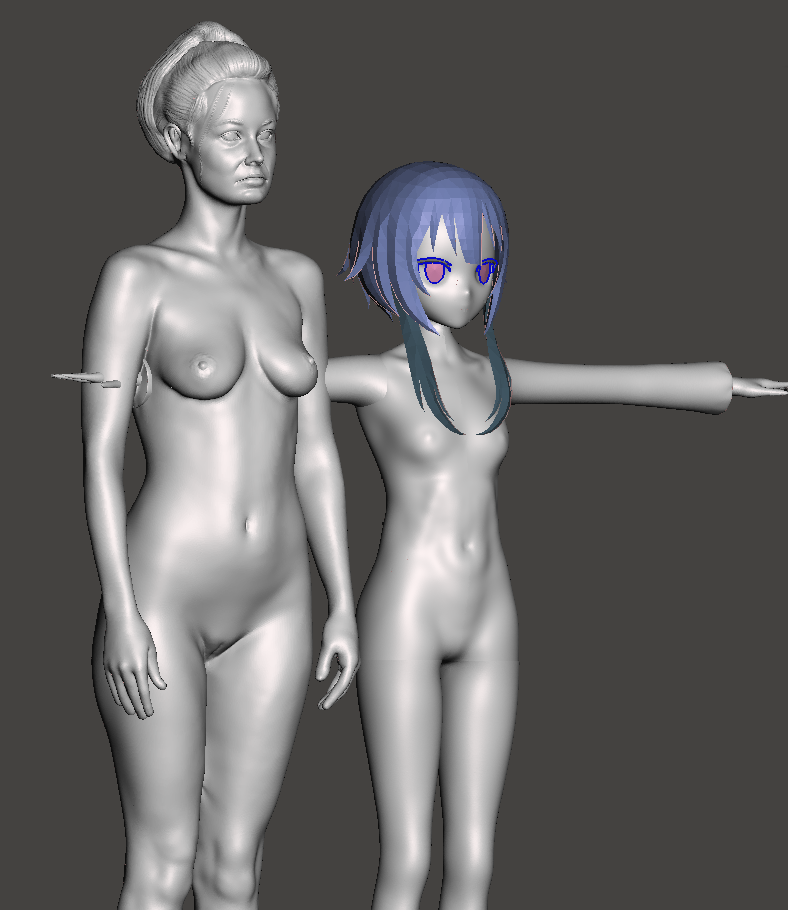

MaidCom's current design (151.5cm) compared to a 170cm European woman 3D scan. I'm currently optimizing her measurements to fit picrel outfit. Then comes optimizing for movement. I will have a doll prototype within the next month. It's insane how far away the current design is from where it began. Heaps of mistakes and learning over what feels like a lifetime has lead to this. I pray it's finally the one. (Arms and hair are from a Megumin game rip and are only present for a sense of how she'll look in clothes with hair. The arm will be the one from the previous design. The body is technically also that body, just poked and prodded into being mostly anatomically correct.)
>>39607 I'm excited to finally see it made physical! How will she articulate?
>>39607 I think this new design is fantastic. Very cute. Don't take this the wrong way but I think if you raised the height ever so slightly, 3 inches, it would cause you less "woke" trouble. As the average women's height is around 5"- 3". Robowaifu's are going to be attacked but if you can thwart them by saying it's average Women's height right off the bat then they can't play the pedo angle on you. If you make it smaller the criticism will be all about how you are a pedo. That's all anyone will talk about (they will make sure of that). Not saying you are, just I can see as their major attack angle. They will do anything to prop up the matriarchy. BTW Tor site is down.
Open file (34.68 KB 474x652 OIP (82).jpeg)
>>39609 I disagree, they'll use that card no matter what. If it's not the height (which I doubt they'll follow the statistical average), it'll be the face, the not-obese design, the graceful femineity, or even just the anime design. I spend a lot of time on Twitter, partially for Galatea promotion, and I see these Twitter freaks in action. If it's cute, feminine, not obese, anime styled, then it's "diddy ahh blud frfr no cap" from pussywhipped zoomers and/or radical leftists. >BTW Tor site is down. That explains it! I felt like the Twilight Zone episode "Where is Everybody?" I thought maybe Chobitsu being on break meant everyone stopped posting as much. Or that Chobitsu really did make up the majority of posts.
>>39610 They'll use anything they can but cutting off one thing means less they can say. It's only 3" and cuts, or I think cuts off, a good deal of of avenues of criticism. If you're going to make it small why not 4 feet or 3.5 and save a lot of material. Well you know why, so why not add a few inches?
>>39611 Sure, but they're going to persist regardless, and it's only going to briefly slow them down, if at all. They have a set conclusion and will twist reality to get there. Like I said, there are many other factors that they would use. If the fact that there are objectively short adult women doesn't stop them, then some average isn't going to give them much pause. They simply hate all that is good and beautiful in the world. Conflict is inevitable. Keep in mind these are the people who identify with fictional demons. Ultimately, it is up to Kiwi.
Open file (158.24 KB 602x814 HipJoint.png)
Open file (141.23 KB 1280x720 i_dont_care.jpg)

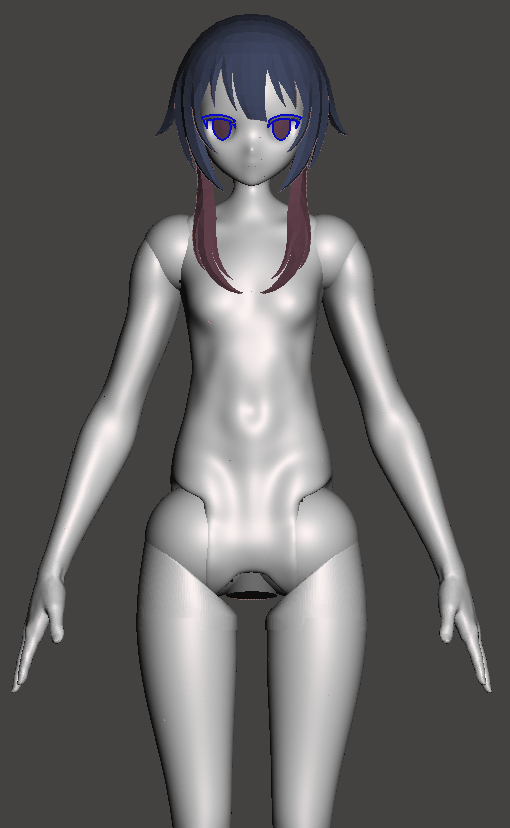

>>39608 >Articulation Psuedo ball joints see >>36346 If you have any suggestions, I'm open. >>39609 She's 5 ft for me, you can add 3 inches anywhere you want them. As for the squawking of idiots, I take the same stance as Vance. "Woke" already died, it's barely on embers of life support. Even billionaires shoveling money into keeping it alive, can't make real people care. If you ignore them, they just go away. They have no power or conviction, just loud whining until the next thing. >>39610 Frfr, these nutters will harp on anything if they think it'll signal virtue (manipulate woman into feeling safe so they can prey on them.) I don't care about sick manipulative Ramons. I care about promoting a tool to promote health and well being for everyone like us. >>39611 Mate, you're fighting their battles for them right now. We already won, we just need to ignore them. >Why not 4ft tall? Simply because I want her to look nice in small woman's clothing. That, and 150cm is the legal height requirement for sex dolls here in New Zealand. I don't want a bloke to get in trouble because he gave her a jolly roggerin'.
>>39614 >If you have any suggestions, I'm open. -Make sure the prints are sturdy when you need to pop in them -You might want to do a test of the socket-ball to see if the gap gives you the friction you want >laws I don't know how those laws are worded, but I'm pretty sure I curtailed them by making an actual robot that looks like a robot. Idk, I live in America, so I'm not too familiar with the foreign laws. My robowaifu design ethos is "It's not a sex robot, it's a robot you can have sex with." >JD Vance quote Based.
